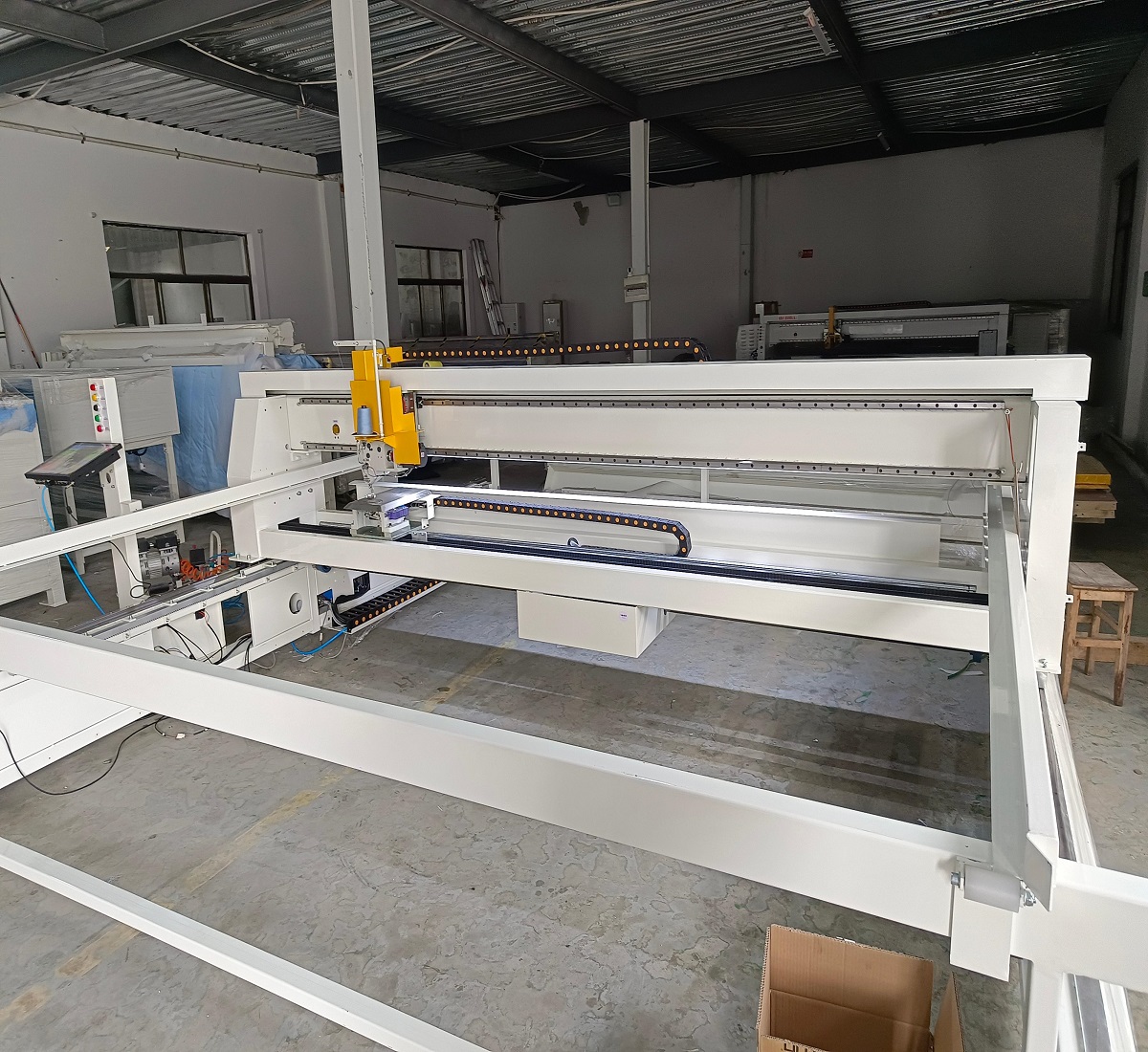

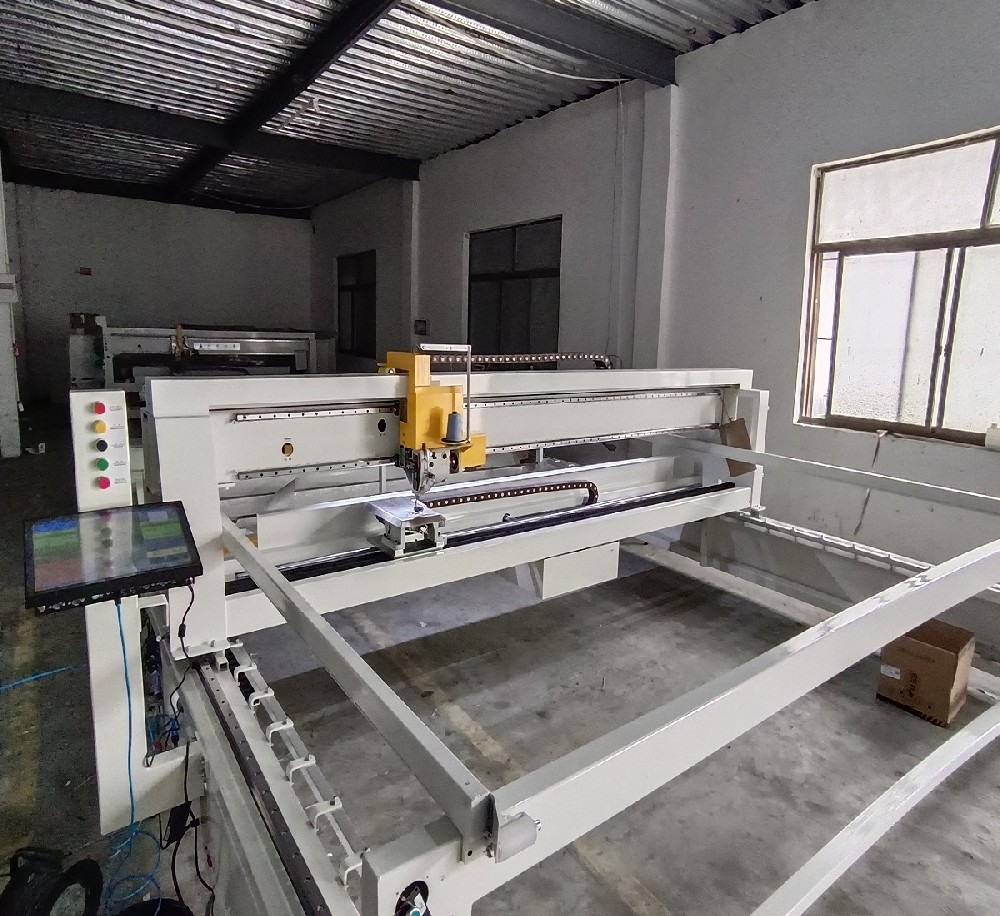

SINGLE NEEDLE QUILTING MACHIEN EXPORTED TO INDIA
Main features:
1.15-inch industrial integrated touch screen
2.Intelligent, networked
3.Y-direction rack and pinion transmission,higher precision.
4.X-direction to 8M belt transmission.
5.The head and the frame are oil-free,prevent the cloth from having oil.
6.Y-direction uses 35 square rails for better stability.
7.The highest speed is 3800 rpm,continuous working speed throughout the day is recommended 2600-3200 rpm
8.Automatic lift head,after quilting a bed of material,the head is raised automatically,easy replacement of new material frame
9.Customized sewing machine head
10.Japan Mitsubishi servo motor,provide powerful and accurate driving force
Specifications:
HFJ-S260 | HFJ-S280 | HFJ-S300 | HFJ-S320 | HFJ-S350 | |
Quilting Size | 2.6mx2.8m | 2.8mx3.2m | 3.0mx3.2m | 3.2mx3.5m | 3.5m*3.5m |
Needle Drop Size | 2.4mx2.6m | 2.6mx3.0m | 2.8mx3.0m | 3.0mx3.3m | 3.3m*3.3m |
Head | Single head,single needle,Double-line lock stitch, big hook | ||||
Sewing Thickness | 1200g/m² | ||||
Sewing Speed | 500-3800 RPM Stitch 1-20mm(adjustable) | ||||
Needle | GROZ | ||||
Dimensions | 3.45mx3.4mx1.4m | 3.75mx3.6mx1.4m | 3.95mx3.8mx1.4m | 4.15mx4mx1.4m | 4.35mx4.3mx1.4m |
Power | 220V AC 50HZ 1KW | ||||
Weight | 1800kg | 1900kg | 2000kg | 2200kg | |
