Customized Nonwoven Fabric Machines Needle Punching Production Line for Geotextile
Company Information
Product Description
Opeing Machine
| Size: 4200*1600*1400MM Weight: 800kg Power: 8.5kw Cylinder diameter 400mm Working Width 1000mm Opening the compressed fiber raw materials into fluffy fibers and transport them to feeding box. |
Feeding Box
| Size: 3500*1820*2400MM Weight: 1900kg Power: 3kw Working width 1360mm To collect the fluffy fibers which delivered by the opening machine and evenly transport those fibers to carding machine . |

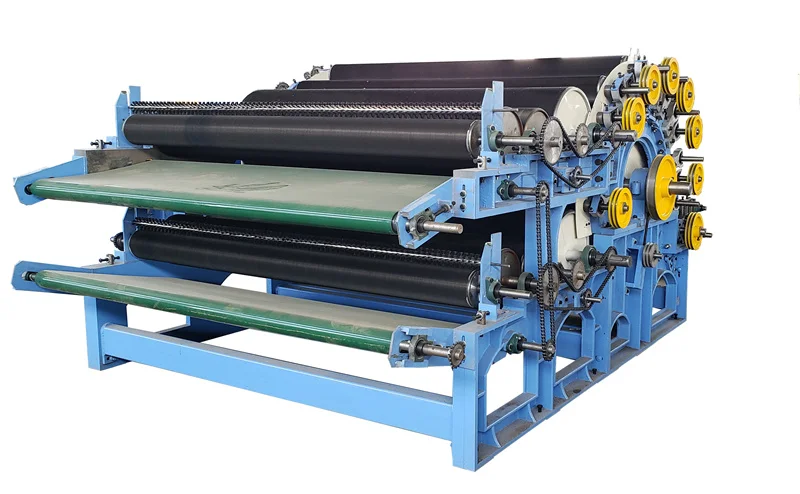

Carding Machine
| Size: 2850*2300*2000MM Weight: 5400kg Power: 26kw Working width 1550mm Single cylinder double doffer Cylinder diameter 1550mm Opening and combing fibers into fibrous layer,after being combed by freedom rollers, the fiber in fibrous layer will be intertwined more closely. |
Cross Lapper
| Size : 3000*2600*1860MM Weight : 1700KG Power: 6KW By folding the fiber layer back and forth,continuous formation of a fiber layer with a certain width and thickness. |

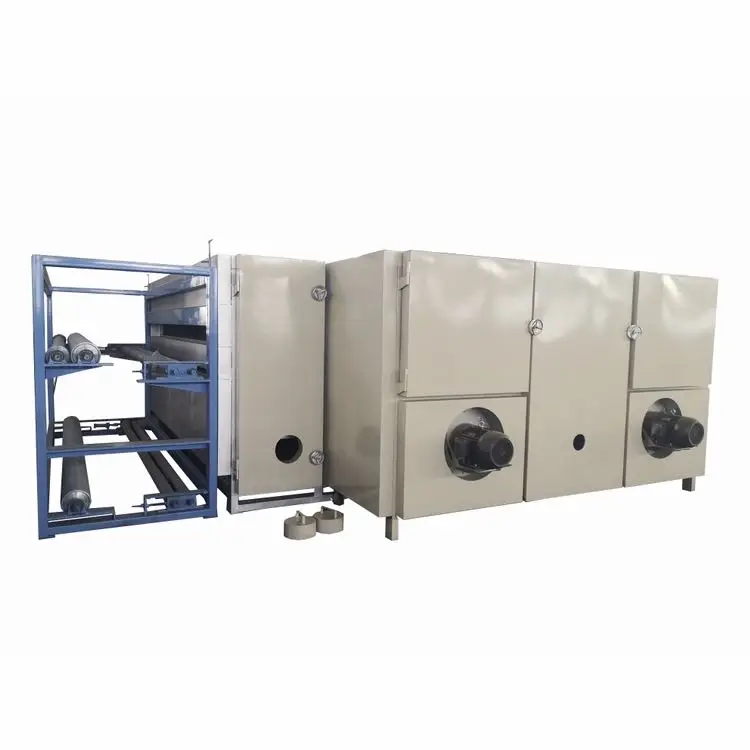

Oven
| Size: 4600 * 4000 * 1230MM Weight:1600KG Power: 140.3KW When fiber layer passes through oven, the high temperature causes the low-melting chemical fiber melting in the entire fiber layer. After cooling, it binds all the fibers together like glue, but more environmentally friendly. |
Rolling Machine
| Size :4600*3000*1300MM Weight : 1200KG Power: 3KW Trim the two sides of the fiber layer by the press knives on both sides to obtain a neat edge. Rolling the fiber layer into a fiber roll with a specific width. Setting the required length , when the length reaches the set value , Automatic cross-cutting to obtain a specific length/width fiber roll. |
Processing:
The performance of the whole production line for quilt |
1) the speed governing system can be controlled by the speed control of the infinitely variable speed motor or the speedregulation by frequency converter. |
2) the raw material can be used as chemical fiber, wool, hollow and so on. |
3) electrical components use brand-name electrical appliances, light control switch adopts imported brand.
|
4) The total area of the machine is 11 meters -12 meters long and about 13 meters long. |
| 5) The total power of the motor is 18kw-25kw. |
| 6) The total weight of the whole machine is between 10 tons and -20 tons. |

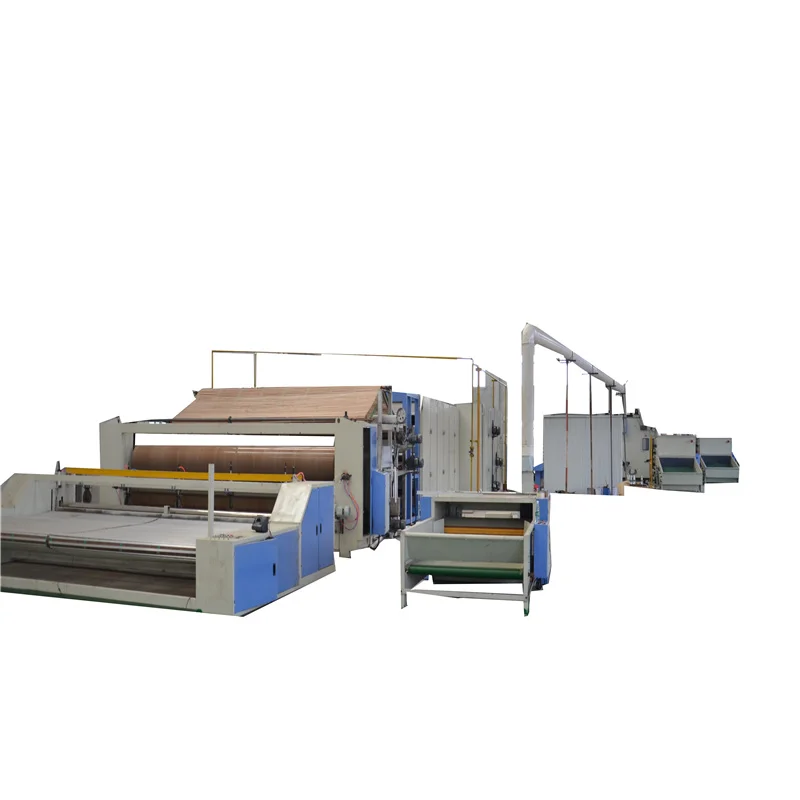

Machine picture
Packaging & Shipping
Our Services
FAQ
1.How long does the machine guarantee?
We guarantee one year for non-human damaged factor.
2.After service?
Engineers available to come to your factory for supplying training and installation.
3.How to control the quality?
We have professional Engineer and inspector make sure that each part of machine working well before shipment.
4.How to contact you?
You could contact us via TM, Skype, Whatsapp, Wechat, QQ, Email
5.What about payment term?
T/T, Western Union, Paypal, Cash, L/C, Trade Assurance, etc..
If any other question please don't hesitate to contact us any time...
