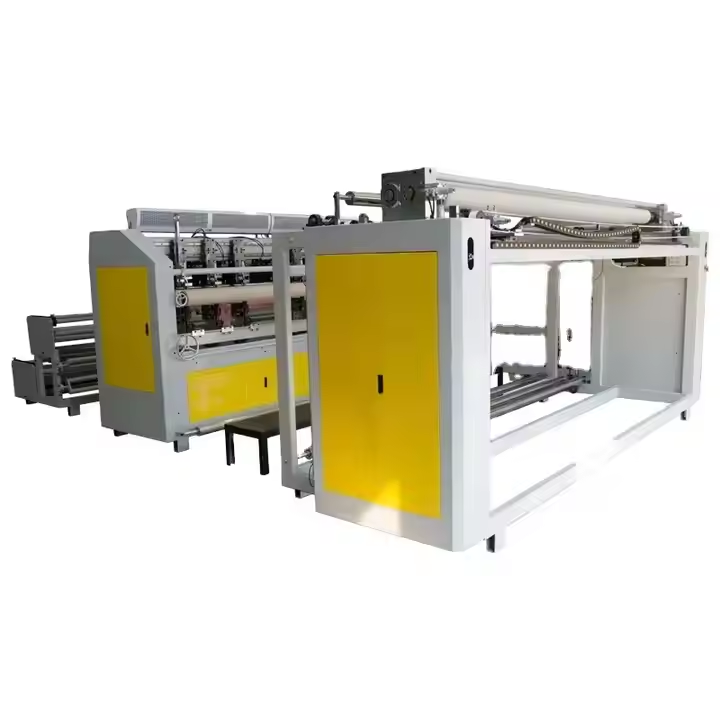

Automatic computerized ultrasonic quilting machine
Product Description
Take the effective width of 3mas an example:
| Fabric material shelf | 3230mm*1050mm*970mm |
| Total weight | 2000kg |
| Effective working width | 3000mm |
| Powersupply | 6KW380V |
| Max quilting thickness | Within 500 gsm |
| Production speed | 4-6meter per minute |
| Required floor space | 7000mm*5000mm |
| Output frequency | Pieces Triode*10piecesSensor*1piece |
| Ambient temperature | under 28 Degree Celsius |
| Rolling machine | 3550mm*530mm*1030mm |
SPECIFICATION
Apply limited pressure on roller in order to prolong service life of roller &horn.
2. Check the wire connections, also the machine parts inside the ultrasonic box before operation.
3. Keep air flow and the ambient temperature won’t be too high (30 degrees orless).
4. Don’t let water enter into the ultrasonic box and ultrasonic transducer/horn.
5. When not in use for long time, oil the metal parts and cover the machine placed in a dry ventilated place.
6. The ultrasonic box should be opened monthly, with a clean air gun to remove dust.
7. Machine needs rest regularly, can’t be work more than 8 hours each time.
8. Don’t touch ultrasonic transducer in order to avoid high voltage shock.
9. Don’t insert your fingers into roller when machine is running.
10. Machine should be grounded reliable.

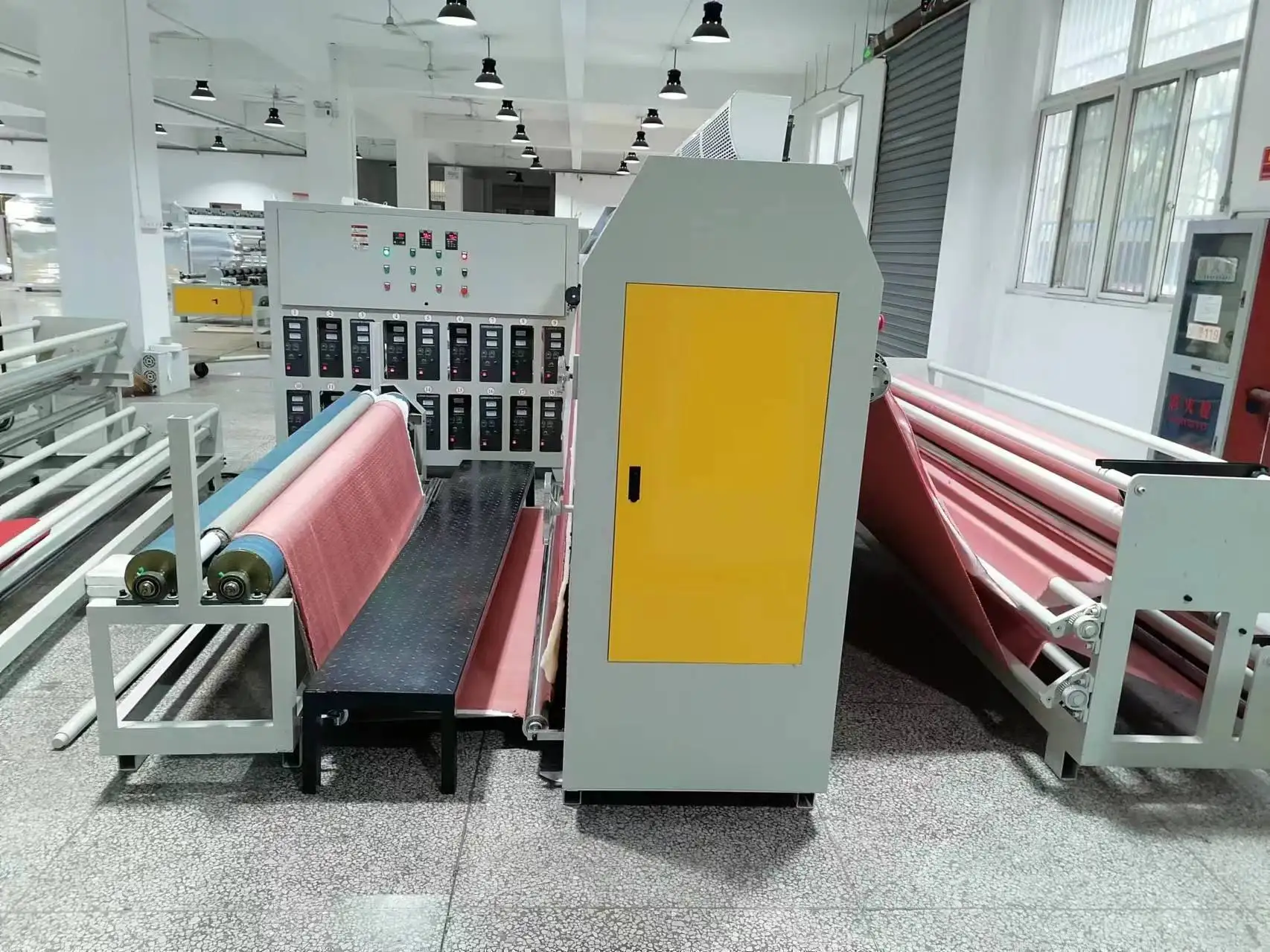

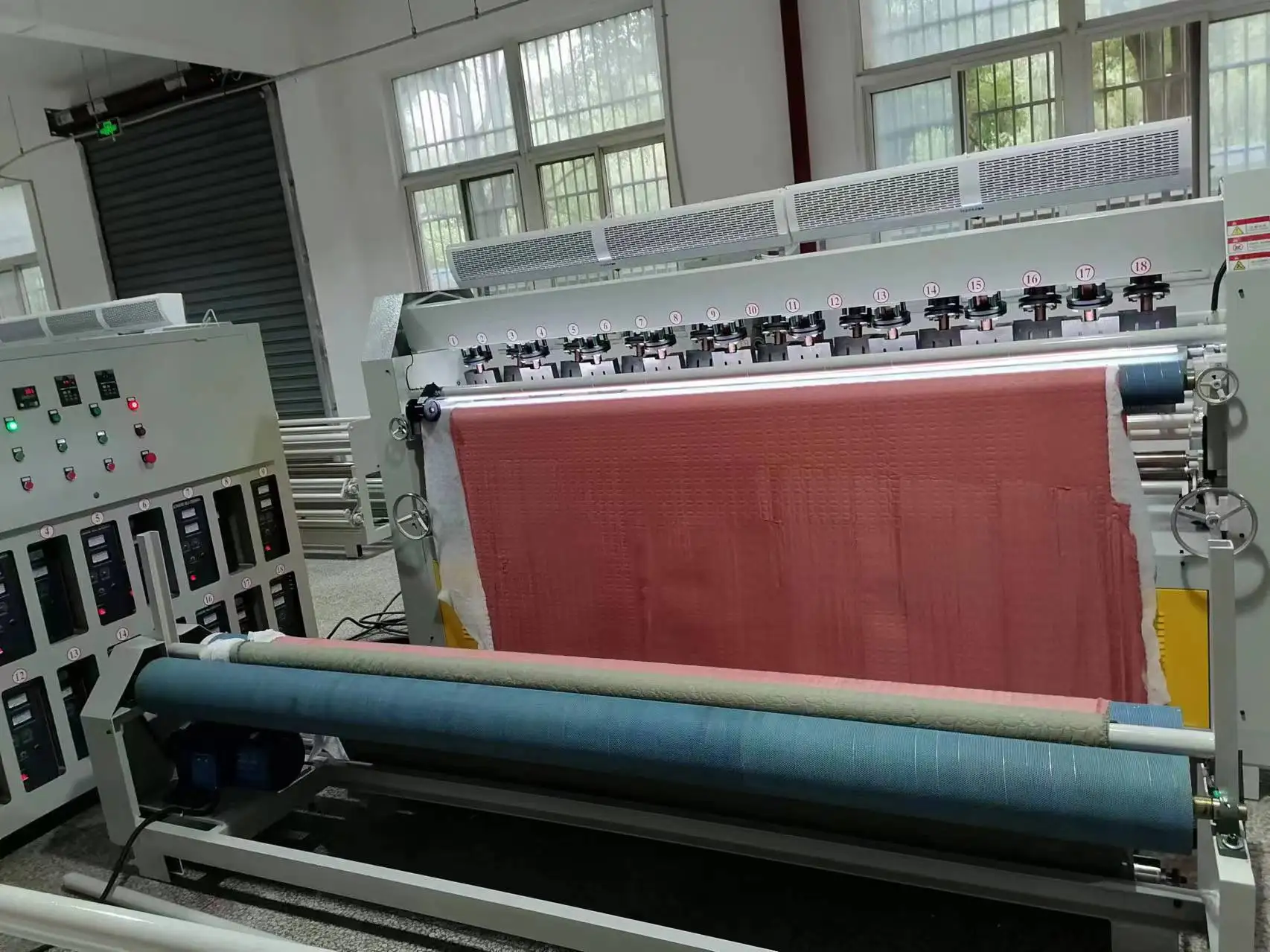

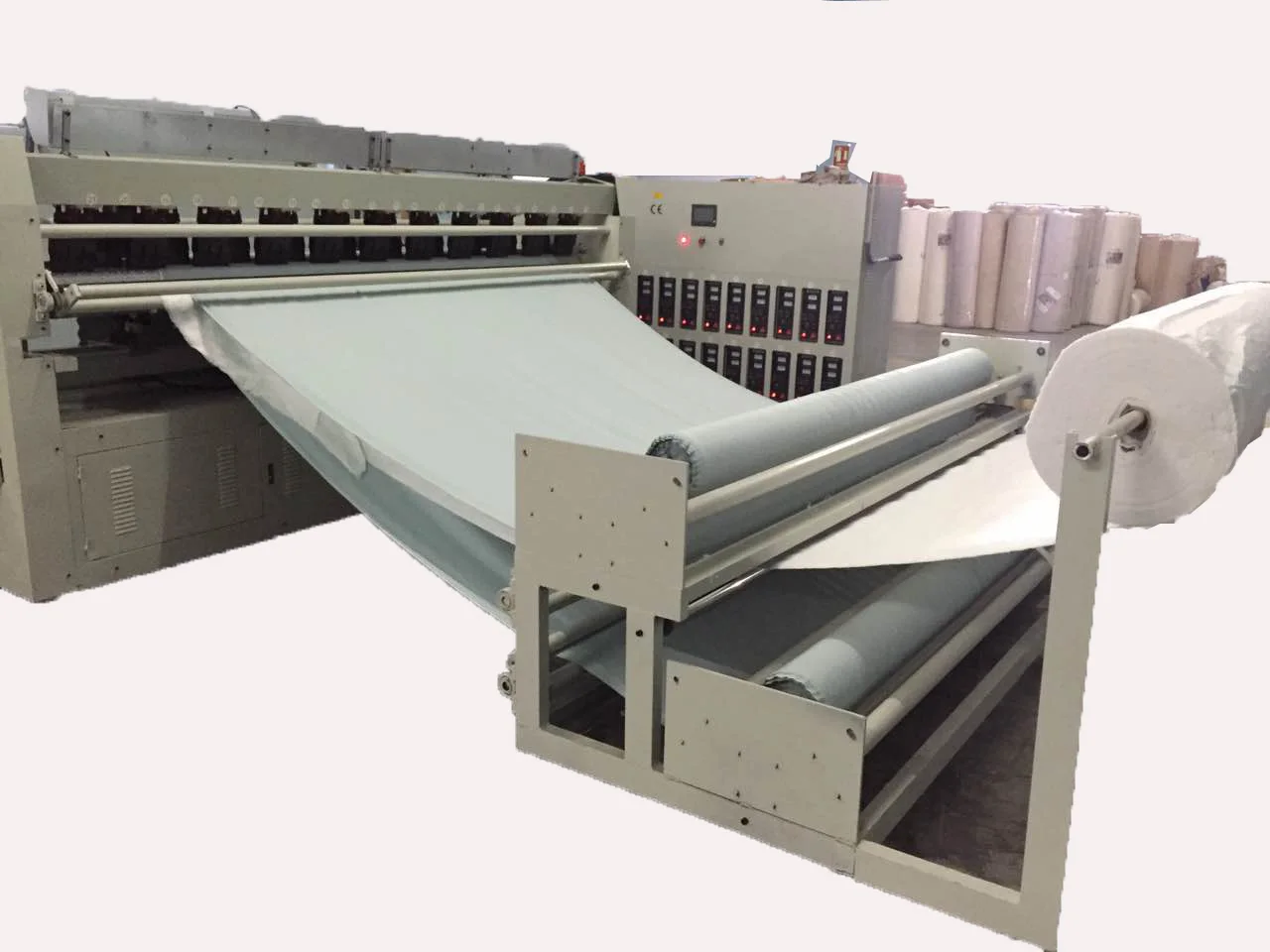

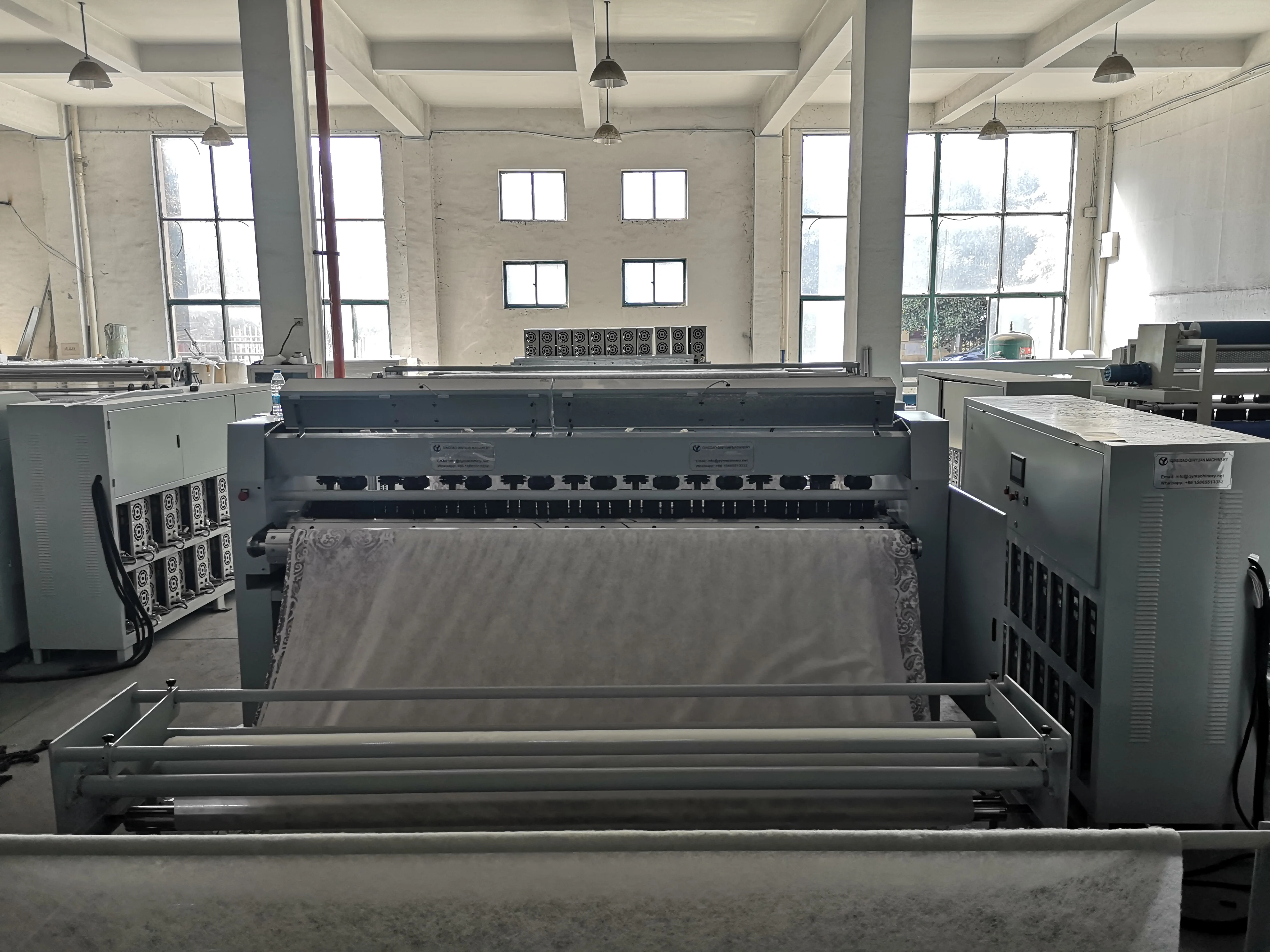

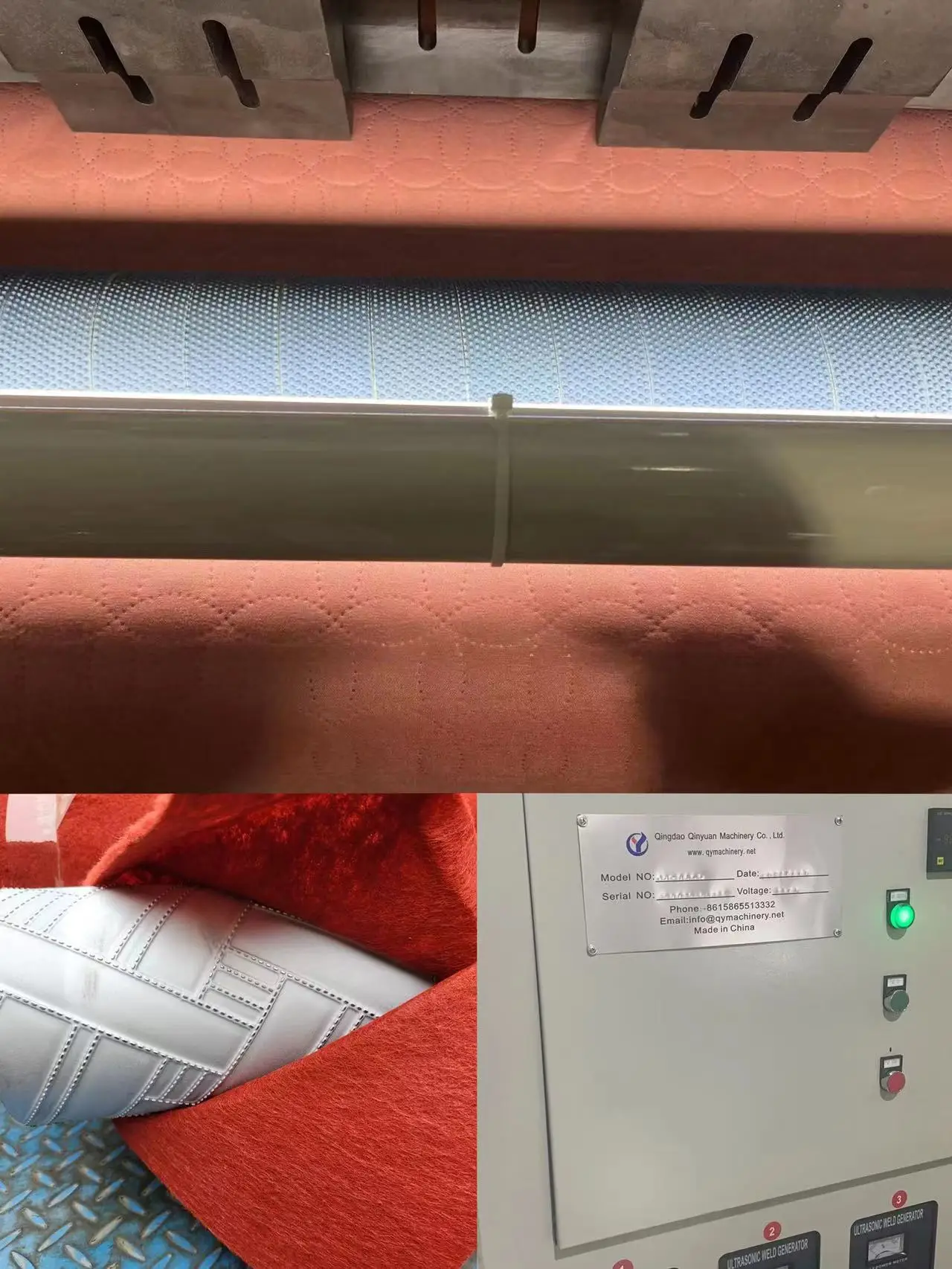

product details
Packaging & Shipping
Application
Company Information
1) We are a professional machine factory for over 20 years;
2)Our company dealing with many kinds of quilting machine,bobbin winder machine,mattress tape edge machine, cutting machine,Quilting Embroidery Machine etc.
3)Our engineers are continous studying advanced technology from developed country, in order to make our machines better suit the customers' needs.
