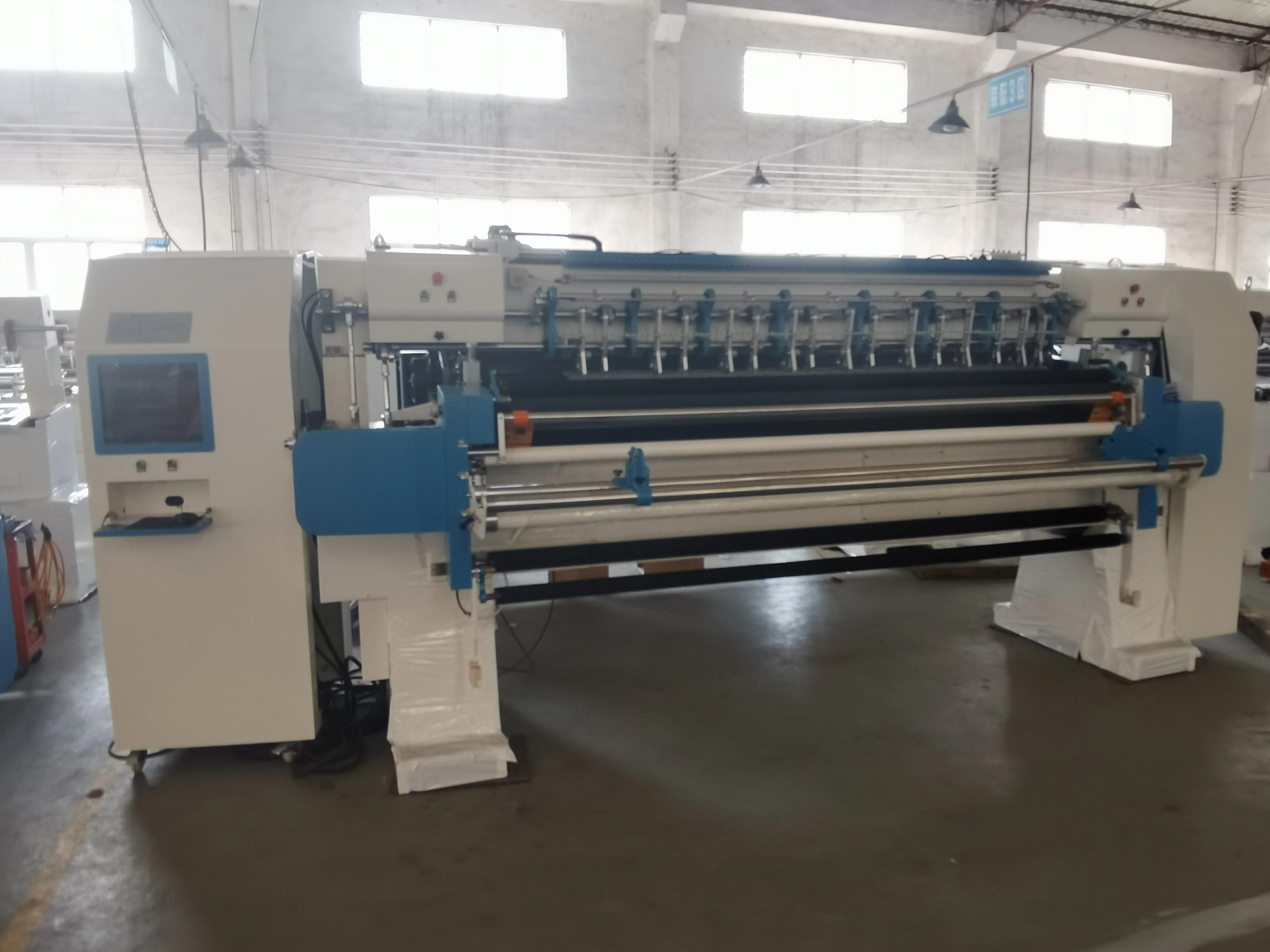

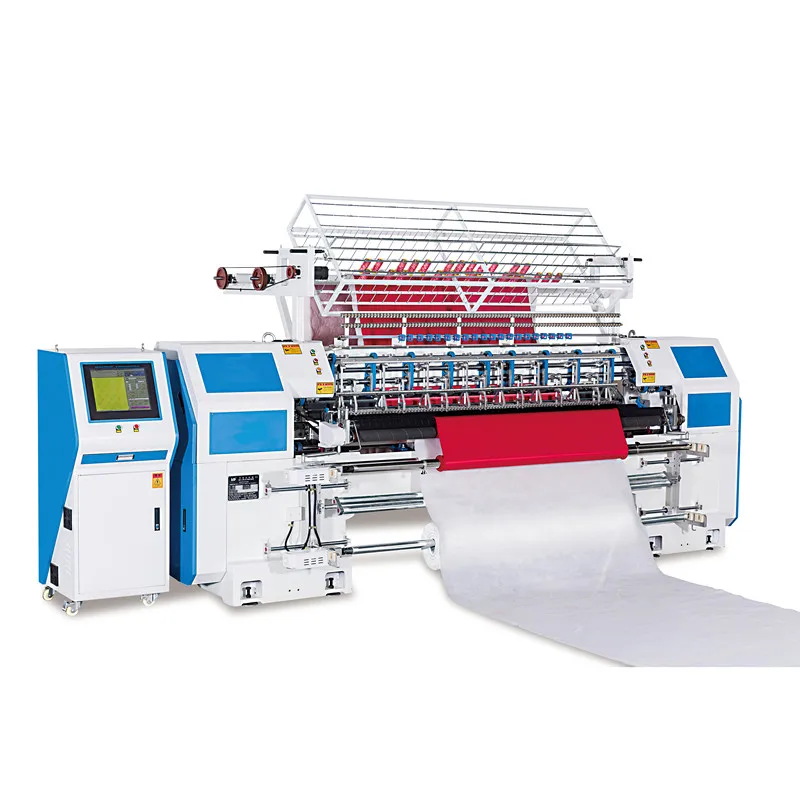

Low Noise Comforter Multi Needle Lock Stitch Quilting Machine
Company Information
Product Description
Parameter | 4YS |
Size:L*W*H | 5000*1200*1700 |
Weight | 4000kg |
Quilting width | 2450 |
Needle bar space | 3C 152.4 |
Needle space | 25.4 |
X-axis movement | 254 |
Quilting thickness | ≤30 |
Stitch | 2-7 |
Output | 60-150m/h |
Needle type | #14,#21 |
Rolling speed | 500-1100r/min |
Rated voltage(AC) | 380V/50HZ |
Power | 4KW |
Main Features:
1,Needle row driven by aluminum alloy needle bar frame structure.Oil free,sturdy and durable.
2,Saddle,roller adopts servo drive device ,spindle frequency control.
3,Saddle direction by rail movement,stable operation,flower shape is more accurate, lower breakage.
4,The bottom surface cloth separation bracket and saddle, saddle reduce machine load, feeding smoothly.
5,Adjust speed by computer and the speed can reach 800r/min, the stitch can be set between 2mm-8mm.
6,360°random quilting and limitless multi-span and independent quilting.
7,Line break automatic stop.
8,Infrared sensor make sure more safety operation.
9,The machine runs smoothly,low noise,high precision, low thread-break rate and easy to operate.
Packaging & Shipping
Our Services
FAQ
1,How long does the machine guarantee? |
We guarantee one year for non-human damaged factor. |
2,After service? |
Engineers available to come to your factory for supplying training and installation. |
3,How to control the quality? |
| We have professional Engineer and inspector make sure that each part of machine working well before shipment. |
4,How to contact you? |
You could contact us via TM, Skype, Whatsapp, Wechat, QQ, Email |
5,What about payment term? |
T/T, Western Union, Paypal, Cash, L/C, Trade Assurance, etc.. |
| 6,If any other question please don’t hesitate to contact us any time... |
