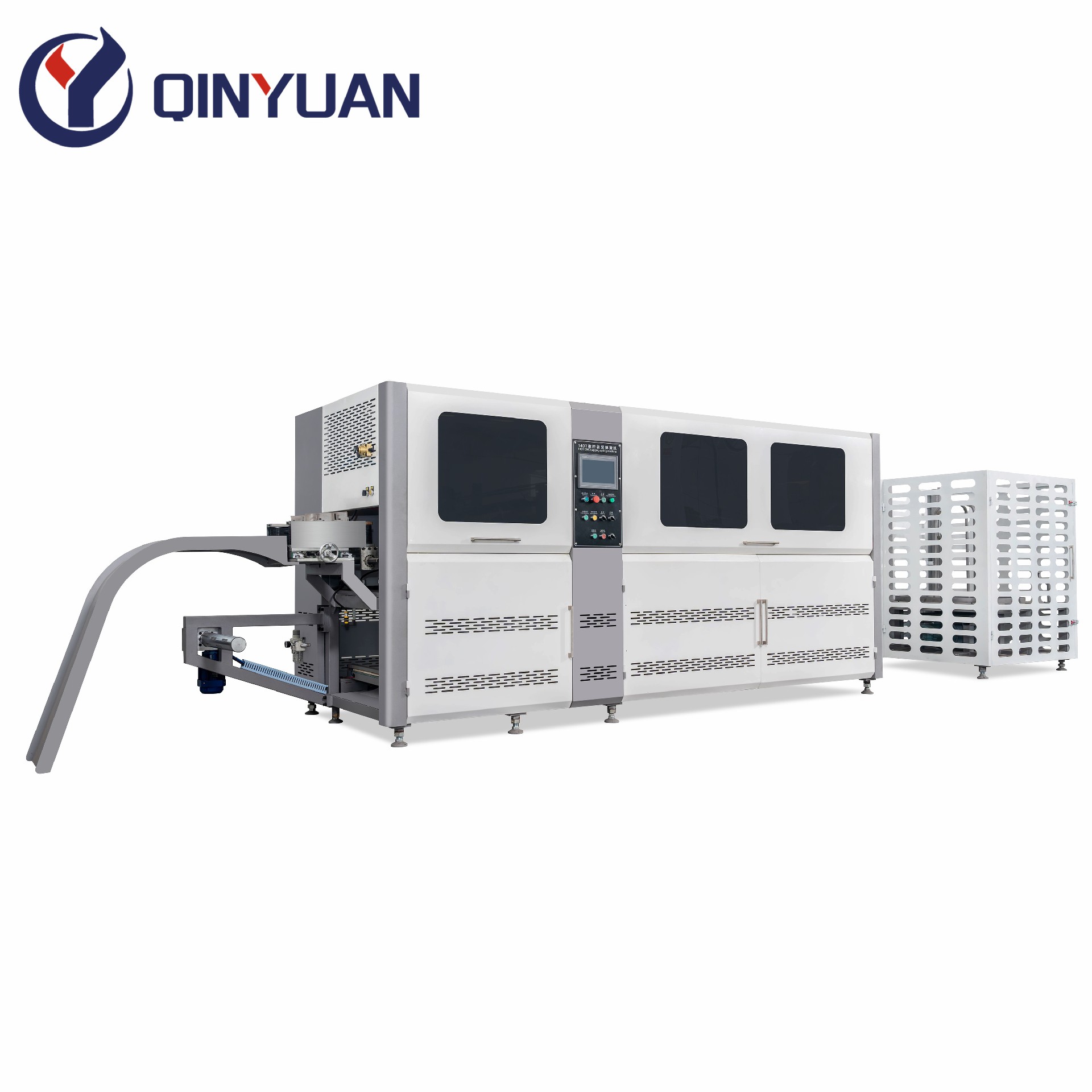

Fully automatic and efficient spring punching machine

Bag springlabor-savingfully automated production

product details

character/model

QYHQ-160T/180T

production capacity

160-180springs/min.

coiling head

Single CNC spring winding head/double wire CNC spring winding head

air consumption

0.6 ㎡ /min.

spring height pocket

100-280mm

suitable cloth diameter

360-690mm

the spring diameter

Ф60-75mm

air pressure

0.6-0.7Mpa

wire diameter

1.6-2.3mm

voltage

3AC380V,50/60Hz

motor power

16.5kW/21.7kW

transformer power

32kW

line frame load-bearing

1000kg

dimensions

4600*1500*1820mm/3500kg




The transmission of wire frame is controlled by frequency converter, which automatically adjusts the transmission speed, and the maximum transmission weight is 1000kg





Mechanical conveying is controlled by servo system, precise action;Inverter cloth feed, effectively reduce the explosion rate, and equipped with cloth feed function, save time and material; Low maintenance cost;


Qinyuan(Jinying)Machinery was formed by Qingdao Qinyuan Mechanical Equipment Co., Ltd, Qingdao Qinyuan Technology Co., Ltd, Nantong Jinying Machinery Co., Ltd, Qingdao Jinying Machinery Co., Ltd, Qingdao Ruidesheng Mechanical Equipment Co., Ltd, Committed to creating one of the three major brands in the home textile machinery industry. We are a textile machinery manufacturer in China for more than 20 years. We supply all kinds of quilting machine to Chinese famous clothes,bedding product and mattress product manufacturer .Meanwhile we also export to Europe, South America, Africa and South-East Asia,etc., "customer first,winning with quality" is our purpose all the time,Market-oriented and timely innovation,which has always been in the industry leader.

1.How long does the machine guarantee?

We guarantee one year for non-human damaged factor.

2.After service?

Engineers available to come to your factory for supplying training and installation.

3.How to control the quality?

We have professional Engineer and inspector make sure that each part of machine working well before shipment.

4.What about payment term?

T/T, Western Union, Paypal, Cash, L/C, Trade Assurance, etc.

5.Are you a manufacturer or Trade company?

We are a professional manufacturer holding our own International Trade Department,for that we can better understand customer's needs and offer a reasonable price.
