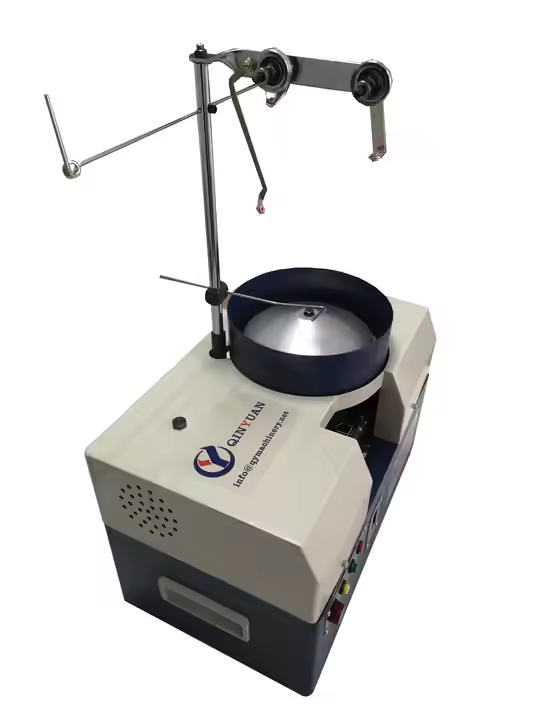

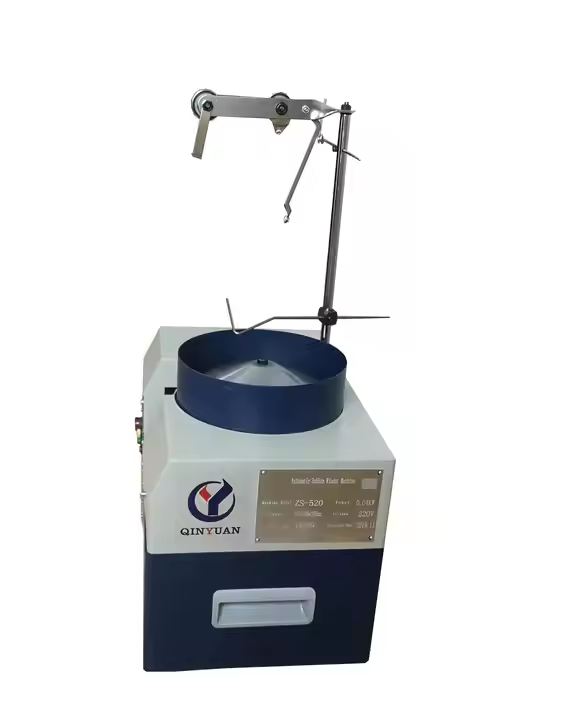

Small automatic polyester thread reel spooling sewing cone thread winding machine
Product Description
Operation Notes
1.All machine wires are 220V voltage, make sure power off supply when maintenance |
2. Make sure by putting the same specification bobbins in the bobbin plate. Don't use the different specification bobbins in mixture |
3. Make sure by using the non-deforming bobbins and cleaning the surplus yarn of bobbins, otherwise it will lock the bobbin,cause of failure |
4. If the alarm at the red light is on, it shows that the bobbins or the yarn has been used up or break yarn. Or the full bobbin without falling into the hopper, sensor without induction to the bobbins sensor light is on all the time. |
5.Would you please open the machine cover, use the air gun to clean the sundries regularly Checking whether there is bobbin drop inside the machine. In order to avoid damage the machine, make sure the machine works |
| 6. Bobbin plumpness of 90% for the best. |
Machine parameters
Power source | AC220V 50HZ |
power | 40w |
Winding speed | 2800 rpm |
Exterior dimensions | 475*370*355(mm) |
Weight | 20KG |
Our Services
Notice
(1) The machine must be installed flat.Non-vibrating.Gears and bushes must be lubricated plenty.Each oil nozzle should be applied lubricant every 8hrs.
(2) Please set the clutch operating lever to idle position when the other mechanism get out of order.
(3) Clean the tail hair every week to prevent clogging.
After service
1. The machine is guaranteed for one year.
2. we can arrange engineer to debug and install for customers
FAQ
Q1: Are you Manufactory or Trade Company?
A: We are the Manufactory in China.
Q2: What products can you offer?
A: We can offer you bobbin winding machine and accessories, quilting machine, embroidery quilting machine etc.
Q3: How do you control the quality?
We have professional inspectors totest the finished products strictly according to standard stipulated.
You can be assured that all the products you get from us are reliable.
Q4: Can you accept customization?
Yes. If you have special requirements on products or packages, we can do customization for you.
Q5: Can you accept trail orders?
Gemerally our MOQ is 1 ton. But if you want to place a trail order as the beginning of our cooperation,
we can accept smaller quantity at frist. Surely we will have further and longer partnership after the beginning.
